Inspecting Transite Asbestos Gas Vents

Transite asbestos was a common product used to vent gas appliances such as furnaces, boilers, and water heaters in older homes in Minnesota. It was also used for sub-slab ductwork, which I wrote about here:  Transite vs. Sub-slab ducts. This material is no longer used because the interior of the vent can deteriorate and flake apart, collapsing in on itself. That, and it contains asbestos. Once the interior of the flue deteriorates it can get blocked, causing hazardous exhaust gases from the appliance to vent back into the home, rather than be carried to the exterior.

The photos below show a transite asbestos chimney flue liner I found during an inspection of a 1955-built home in Columbia Heights. The top of the flue liner had fallen off the chimney, and the interior had collapsed in on itself, causing the water heater to backdraft. This first photo shows what the chimney looked like from the roof.

Chimney

I had to bring a ladder onto the roof to get to the top of the chimney to look down the section on the far right.

Here’s the top section of the transite flue liner that had fallen off of the chimney.

Damaged transite flue

Here’s another shot looking at the top of the chimney.

View of top of chimney

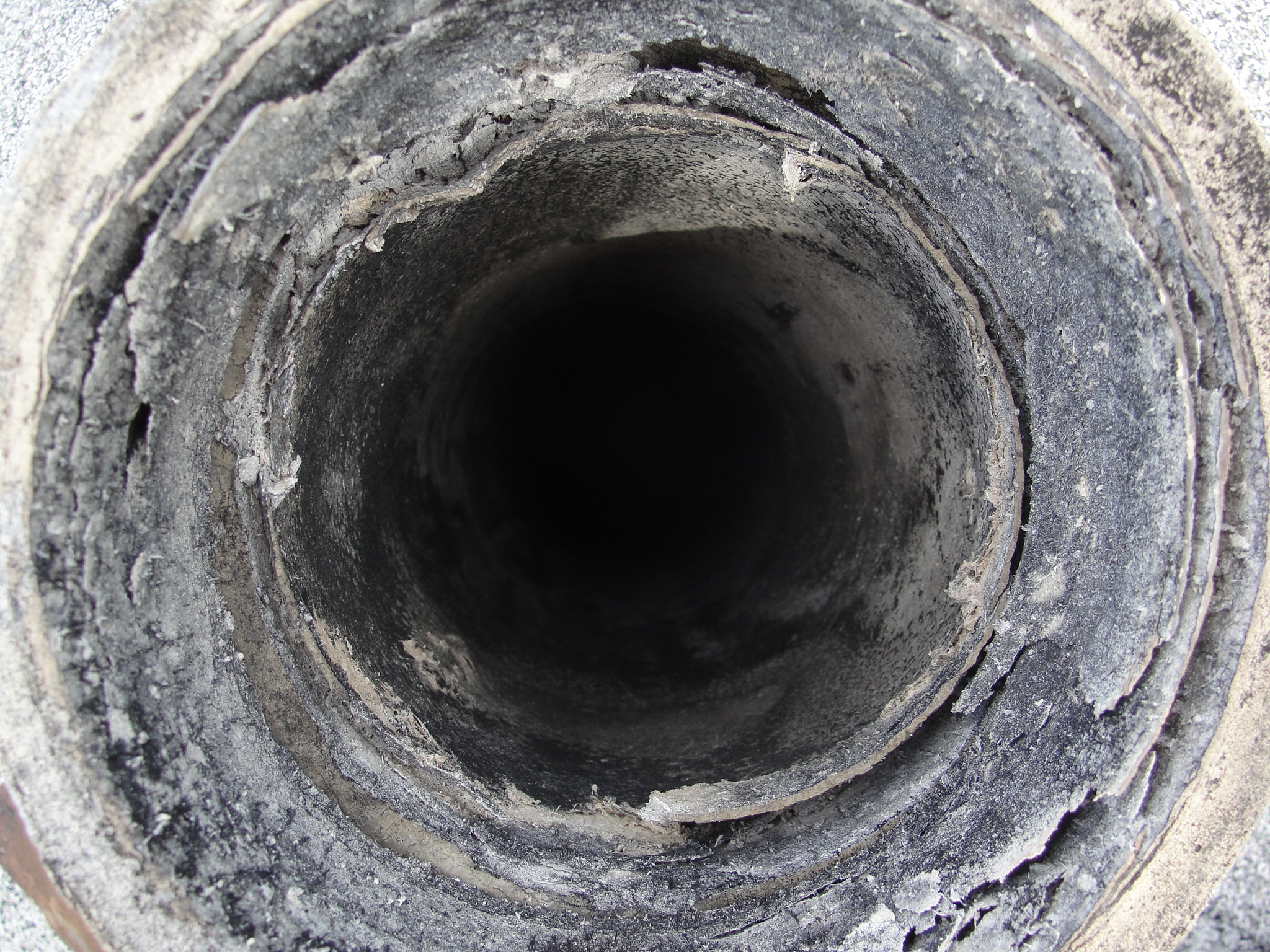

Here are a couple of shots looking down the flue.

Looking down the liner 2

As you can see in the photo above, the interior had flaked apart and completely blocked the flue. When that happens, the exhaust gases can’t escape, so they go back into the home. There was heavy rust staining on top of the water heater, which is a telltale sign that the water heater backdrafts. It doesn’t get much more obvious than that.

Backdrafting water heater

A quick test of the water heater confirmed that it was backdrafting like crazy. The fix is to leave the transite asbestos material in place, block the openings at the top and bottom of the chimney, and replace the water heater with either an electric unit or a powervent unit that can vent out through the side of the house.

What to do about it

If you’re buying a home with a transite asbestos vent, typically for a water heater or furnace, be sure to have the interior of the flue inspected. When it’s in pristine condition, as some of them still are, just plan not to use it again once the gas appliances that are connected to it are replaced. If the flue is deteriorated, you should have it abandoned immediately for safety. An HVAC contractor can help to figure out a different way to vent the existing appliances or can replace the existing appliances with new ones that don’t need to use the transite asbestos flue.

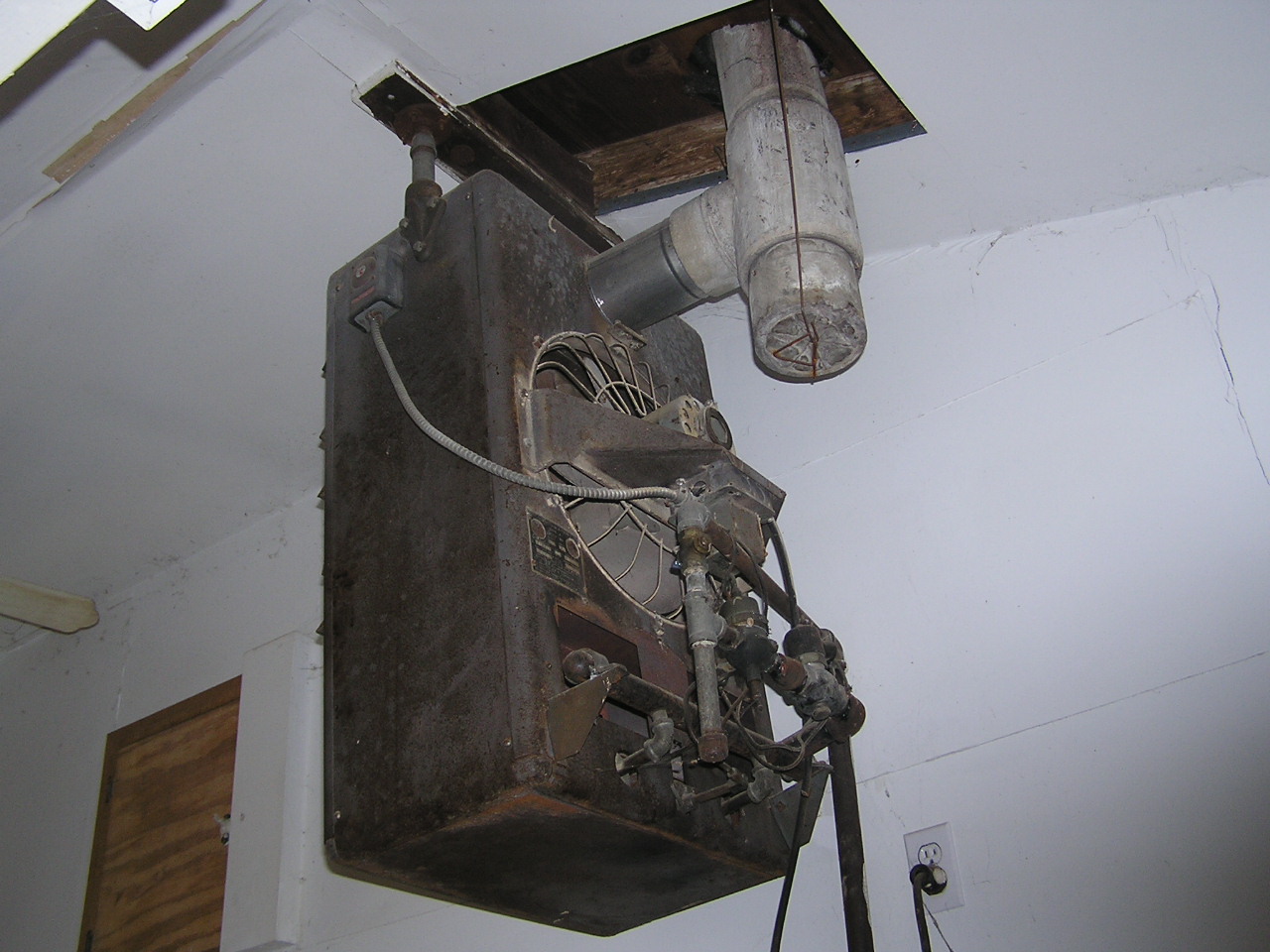

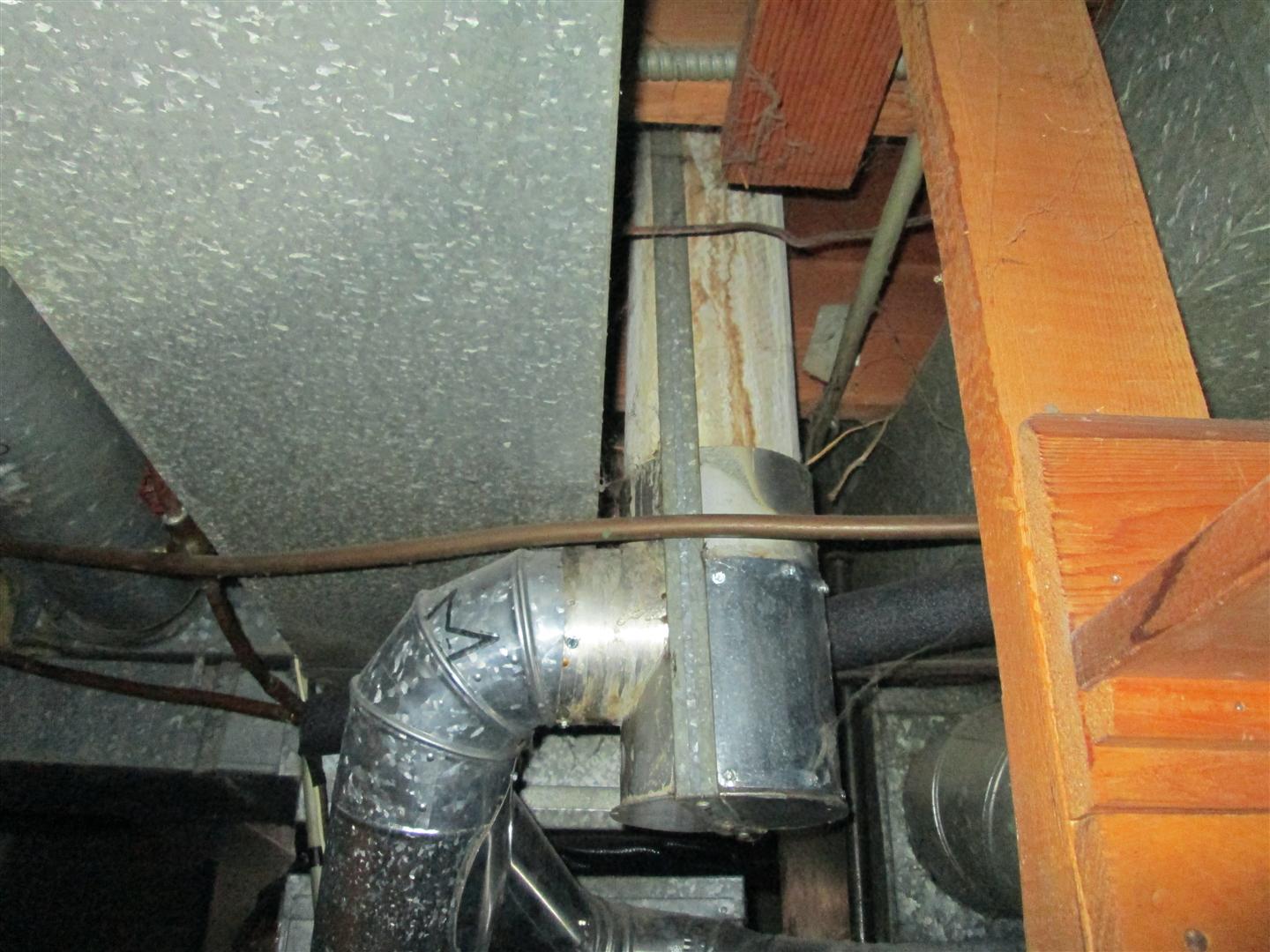

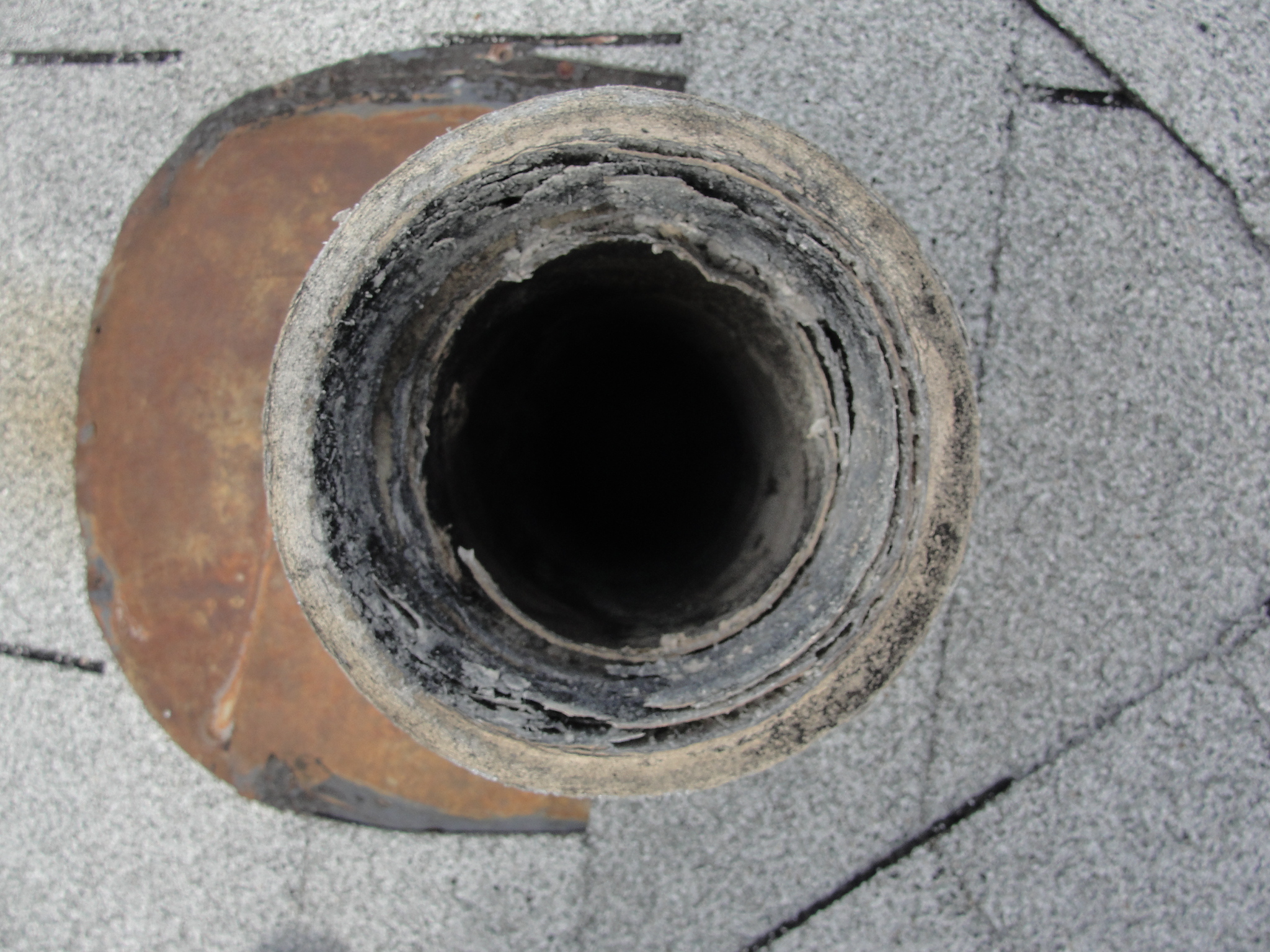

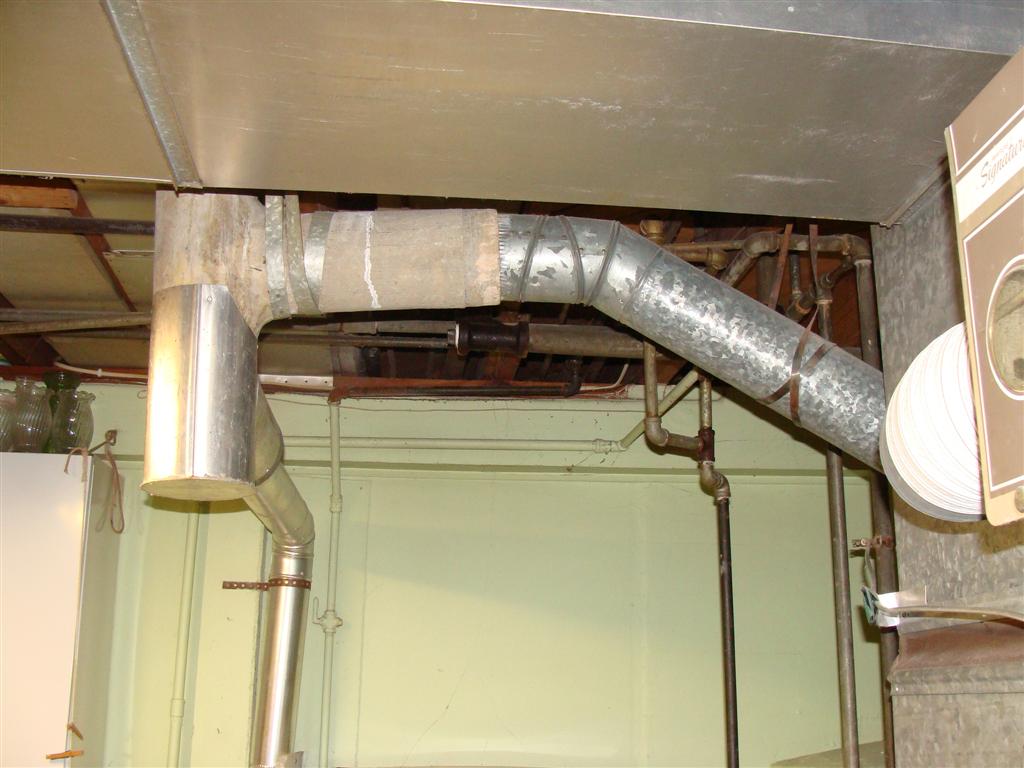

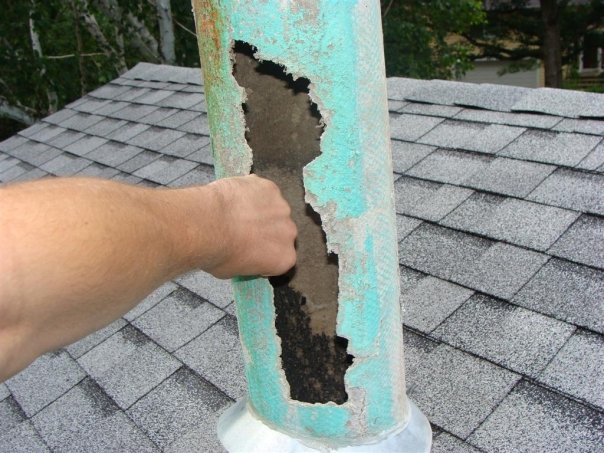

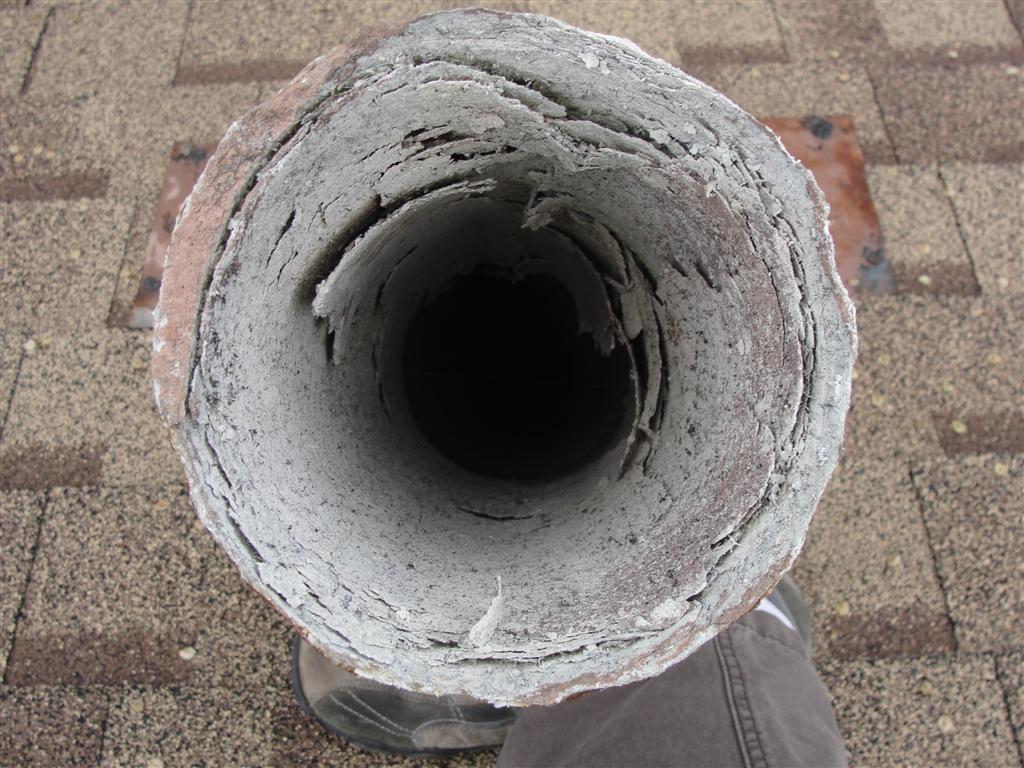

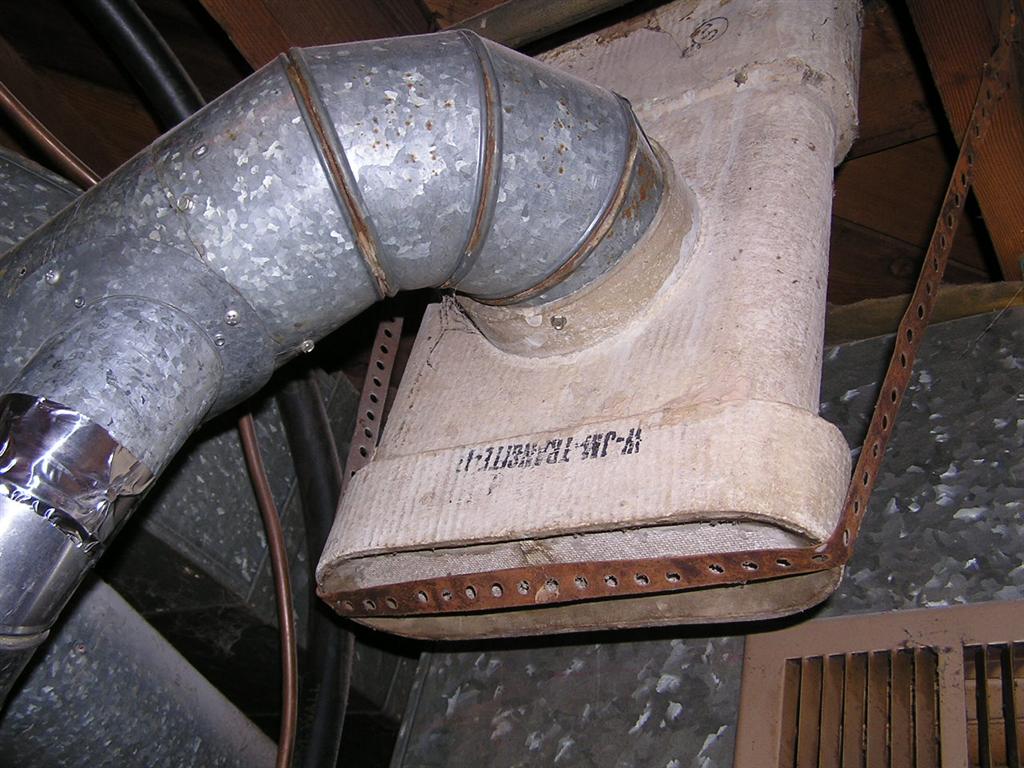

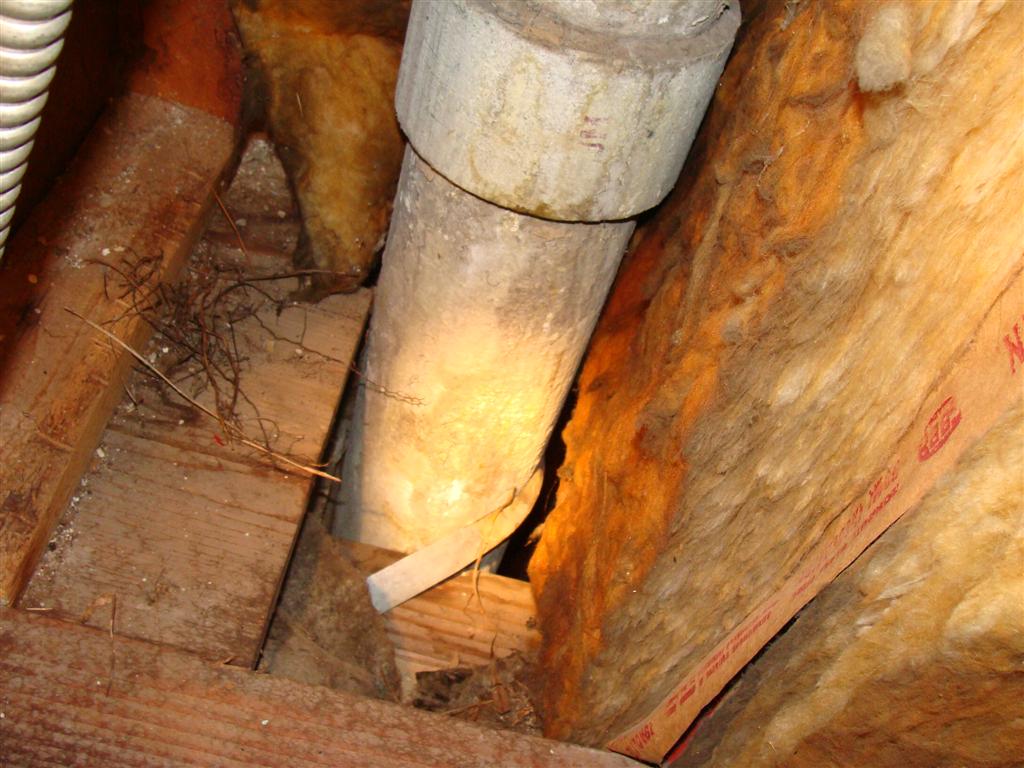

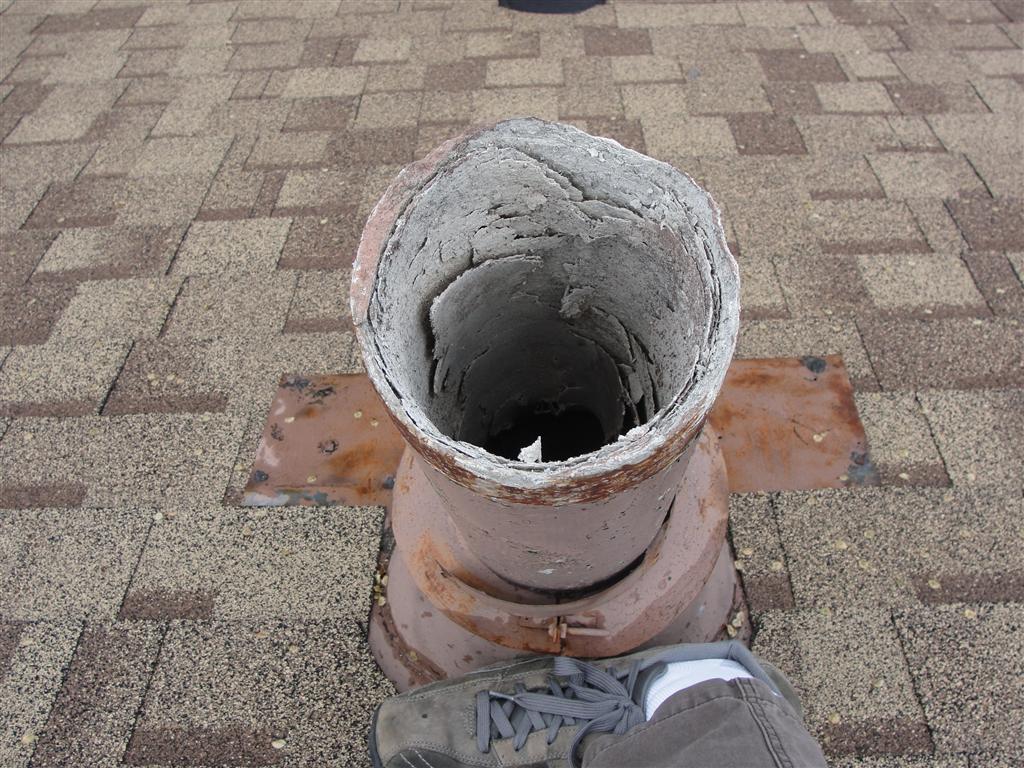

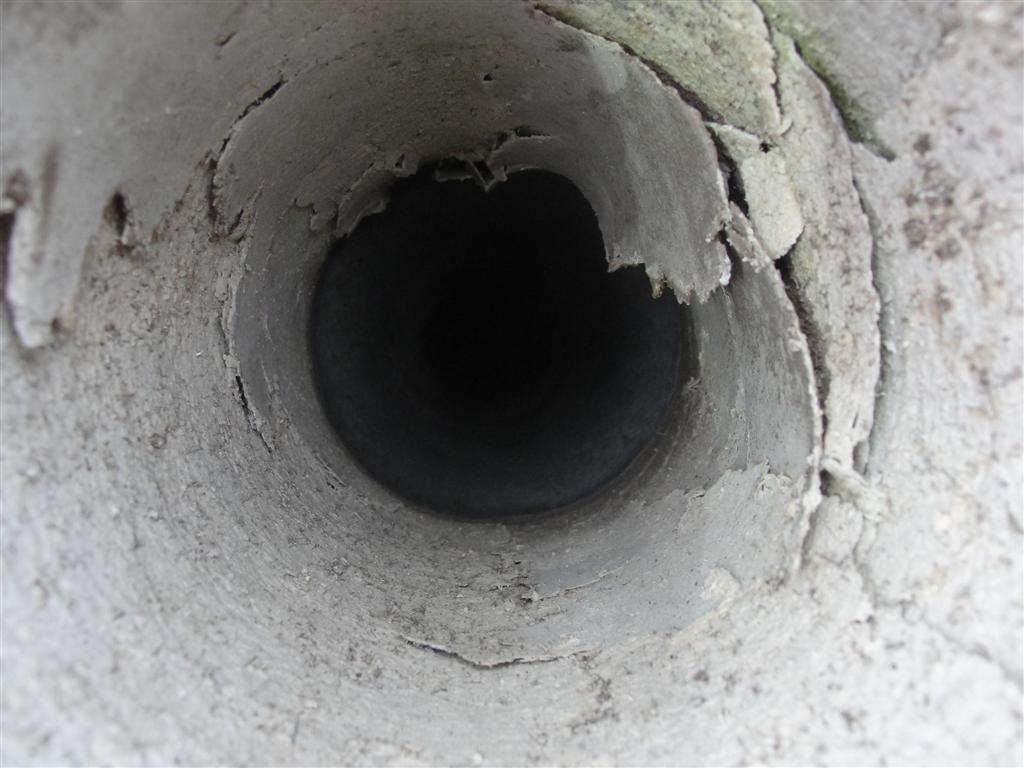

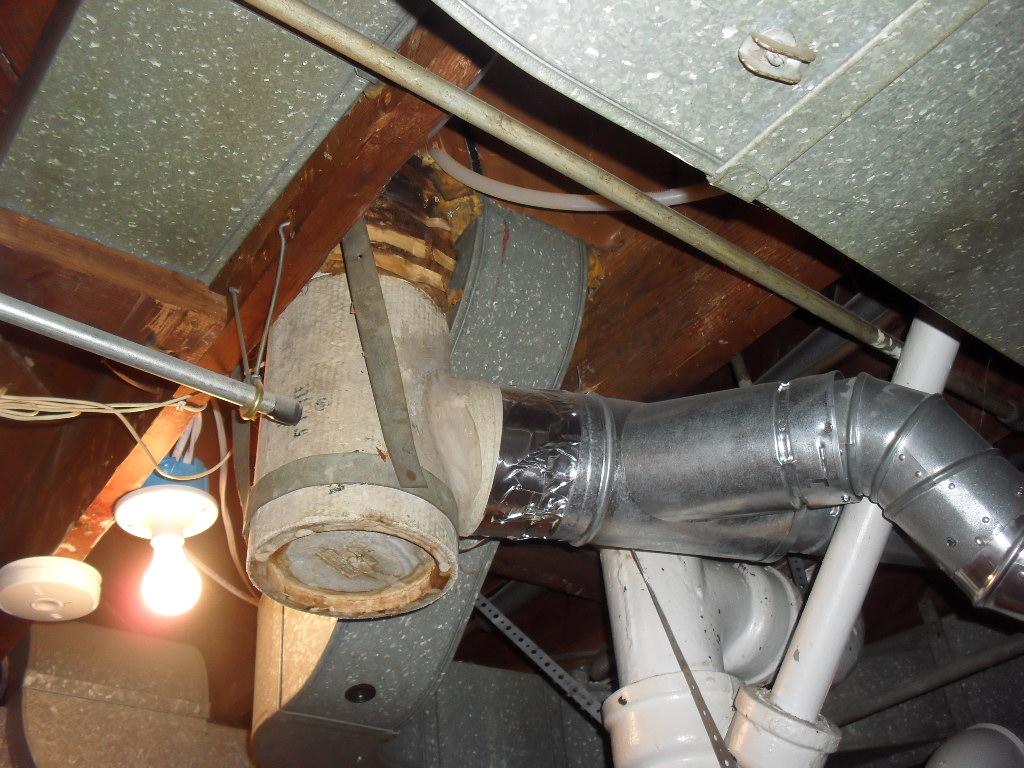

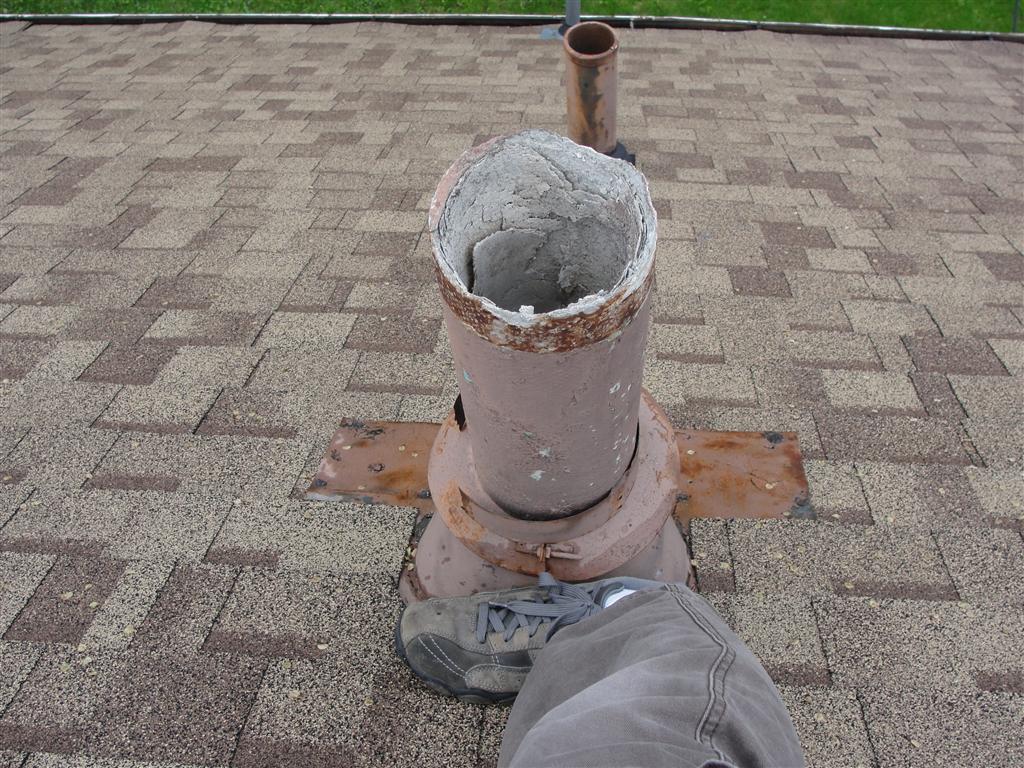

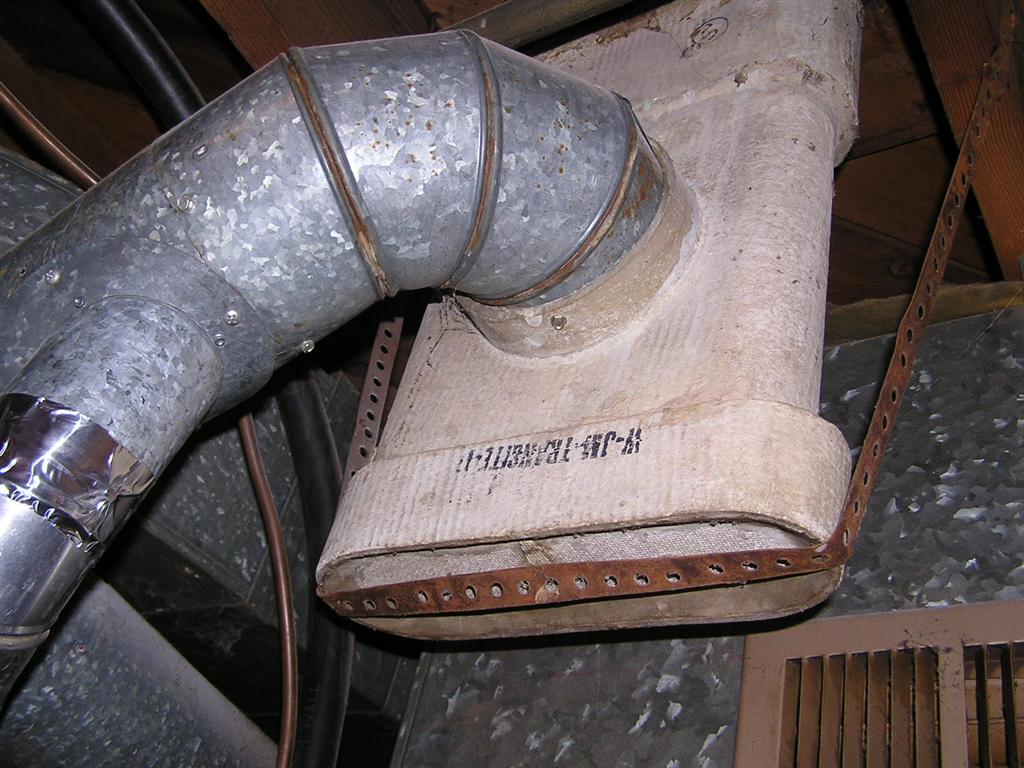

For anyone curious about what other transite asbestos flues look like, check out the photo gallery below. These are all transite asbestos flues that I’ve found while inspecting older homes, mostly in Minneapolis. In each case, it’s that white stuff.

3 responses to “Inspecting Transite Asbestos Gas Vents”

  1. Alex
    June 13, 2014, 7:14 pm

    Do you need to do anything if these flues are sitting unused? I have an asbestos flue in my house, but the furnace and water heater are vented elsewhere. Is it ok to let sleeping dogs lie, in this case?

  2. Reuben Saltzman
    June 14, 2014, 5:35 am

    No, nothing needs to be done with an existing abandoned flue. There is no risk unless the material is somehow made airborne.

  3. Matt
    June 23, 2014, 8:42 pm

    Our Structure Tech inspector noted a flue with flaking asbestos in the home buyers inspection. Glad he did, because we had the seller remove and abate the flue as a pre-sale condition to meet. This gave us peace of mind knowing that we won’t have to ever deal with that flue again. Kudos to the inspector for having the experience to know what to look for in these 1950’s Minneapolis homes!!
